Engineering Plastics Compounding Equipment

Description

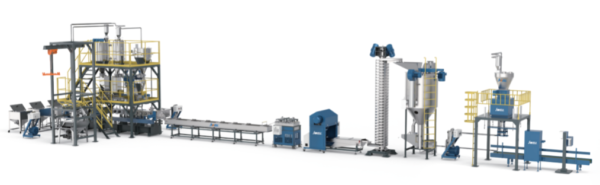

Equipment Components Introduction

① Small bag feeding station

② Jumbo bag feeding station

③ Twin screw extruder

④ Gravimetric dosing & feeding system

⑤ Cooling water tank

⑥ Air knife

⑦ Gantry pelletizer

⑧ Lifting conveyor

⑨ Finished product homogenization silo

⑩ Bagging system

Performance Features

Engineering plastic compounding refers to the technology of optimizing the performance of basic

engineering plastics (such as PA, PC, PBT, PPO, PPS, etc.) to meet specific application requirements through physical, chemical or a combination of both methods. The core goal of modification is to improve the mechanical strength, heat resistance, chemical resistance, flame retardancy, wear resistance, etc. of the material, or to reduce costs and improve processing performance. It is mainly used in the automotive industry, electrical and electronic industry, machinery industry, aerospace, medical equipment, energy and environmental protection, etc

Main Technical Parameters

Model	L/D	RPM	Motor	Capacity kg/hr
CJW552	36 – 52	600/900	110kw/160kw	275 – 550 / 400 – 800
CJWH65	36 – 52	600/900	160kw/220kw	400 – 800 / 550 – 1100
CJWH75	36 – 52	600/900	250kw/315kw	550 – 1100 / 800 – 1600
CJWS65	36 – 52	600/900	200kw/280kw	500 – 1000 / 700 – 1400
CJWS75	36 – 52	600/900	280kw/450kw	700 – 1400 / 1000 – 2000
